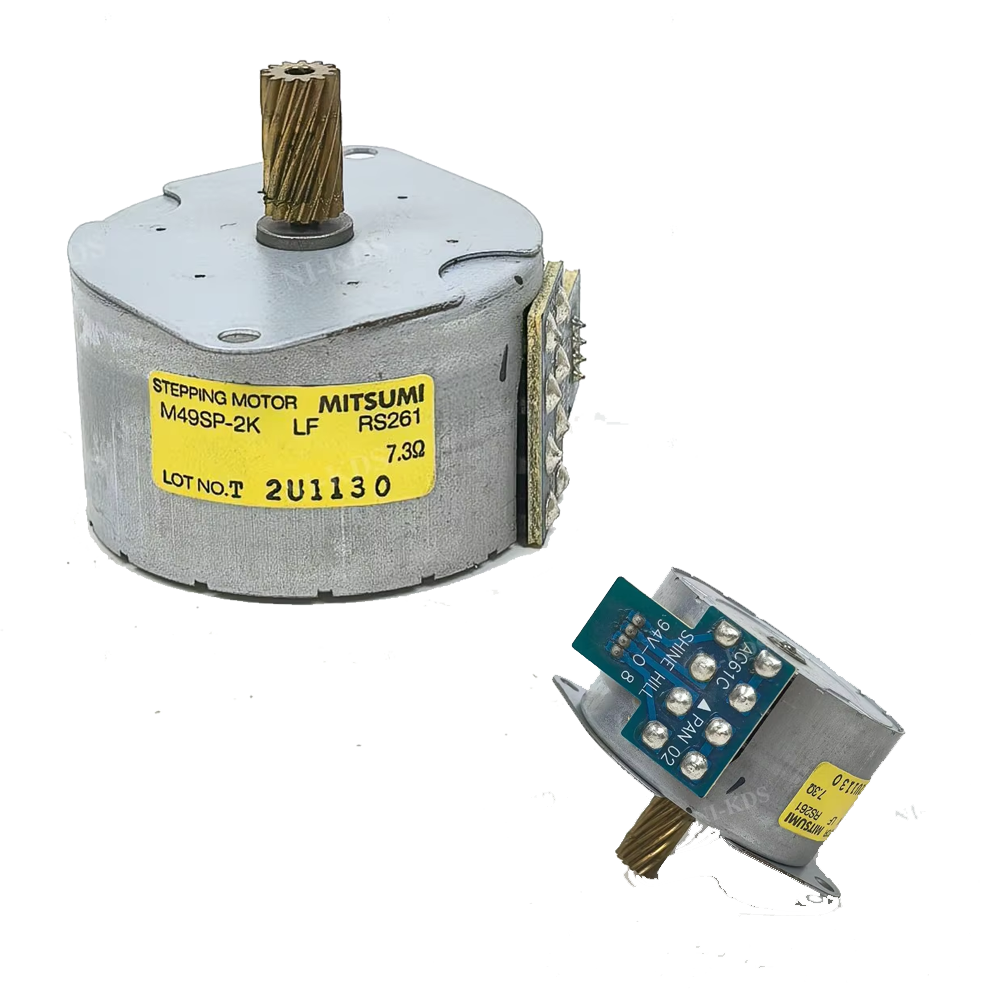

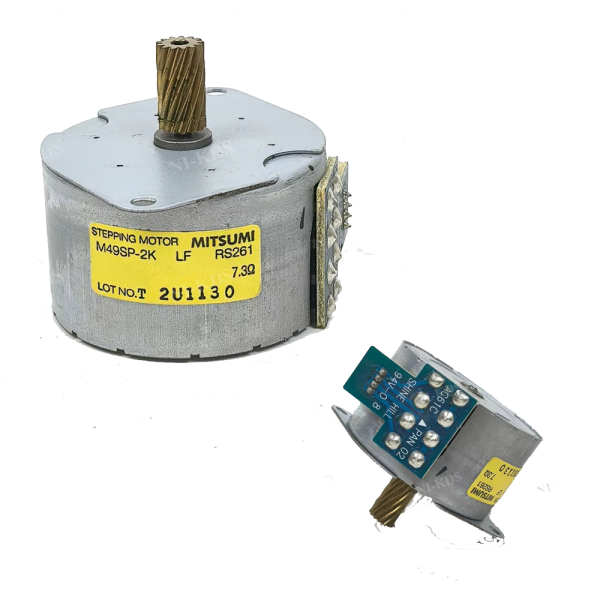

Fuser Drive Motor For HP LaserJet MFP M436 (JC31-00143B)

Fuser Drive Motor – Part No. JC31-00143B

OEM Replacement Motor for Fuser Drive / Fixing Assembly

✅ Compatible Printer Models:

HP LaserJet MFP Series:

• M433 / M433a

• M436n / M436nd / M436nda/ M436

• M438n / M438dn / M438nda /M438

• M440n / M440dn / M440nda

• HP E77822, E77825, E77830

• HP E87640, E87650, E87660

Samsung MultiXpress Series:

• SL-K2200 / K2200FD / K2200ND / K2200

Samsung Color Laser Series:

• CLP-680 / CLP-680ND / CLP-680DW

Xerox WorkCentre Series (shared platform):

• B1022

• B1025

️ Function:

The Fuser Drive Motor powers the gear assembly that rotates the fuser rollers, which apply pressure and heat to bond toner to paper. Failure of this motor may result in fuser warm-up errors, paper jam in fuser, or incomplete toner adhesion.

Product Details:

• Part No.: JC31-00143B

• Type: DC motor (geared)

• Application: Drives the fuser assembly rollers

• Installation Location: Rear side near fuser or gear train unit

• Motor Mount: Screw-fit with connector harness

⚙️ Features:

• OEM-Grade Quality for long lifecycle

• Optimized torque for continuous fusing operations

• Low-noise operation

• Tested for compatibility across multiple models using shared engine designs

Installation Tips:

• Disconnect power before replacing

• Remove the back cover and right-side panel to access motor

• Ensure gear alignment with fuser roller gear during installation
