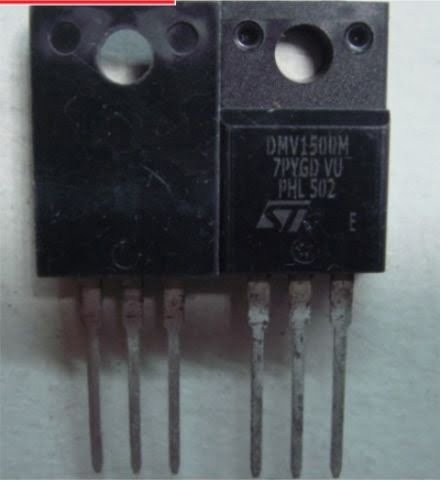

DMV1500M Transistor – Overview
✅ Component Details:
| Parameter | Specification |
|---|---|
| Part Number | DMV1500M |
| Type | High Voltage Dual MOSFET (often used in IC format) |
| Function | Switching Regulator (Integrated in Power Supply Systems) |
| Package | SIP-9 / SIP-7 (Vertical inline package) |
| Application | Primary side of Switch Mode Power Supplies (SMPS) |
⚙️ Typical Use Case:
The DMV1500M is commonly used in:
Switching Power Supplies (SMPS)
LCD/LED TV power supplies
Printer power boards (such as HP M1005, Canon LBP series, etc.)
Monitors and adapters
It integrates power MOSFET(s) and PWM controller into one compact IC, enabling efficient switching and minimizing component count.
Key Features:
High-voltage startup
Overload and over-voltage protection
Low standby power
Built-in thermal shutdown (in some variants)
Equivalent / Related Parts:
DMV1500R, STRW6052, LNK364PN, VIPer22A (based on function – not pin-to-pin)
Use exact match or verify datasheet for pin configuration and ratings
