Top Cover Frame – Canon LBP6230 (RC)

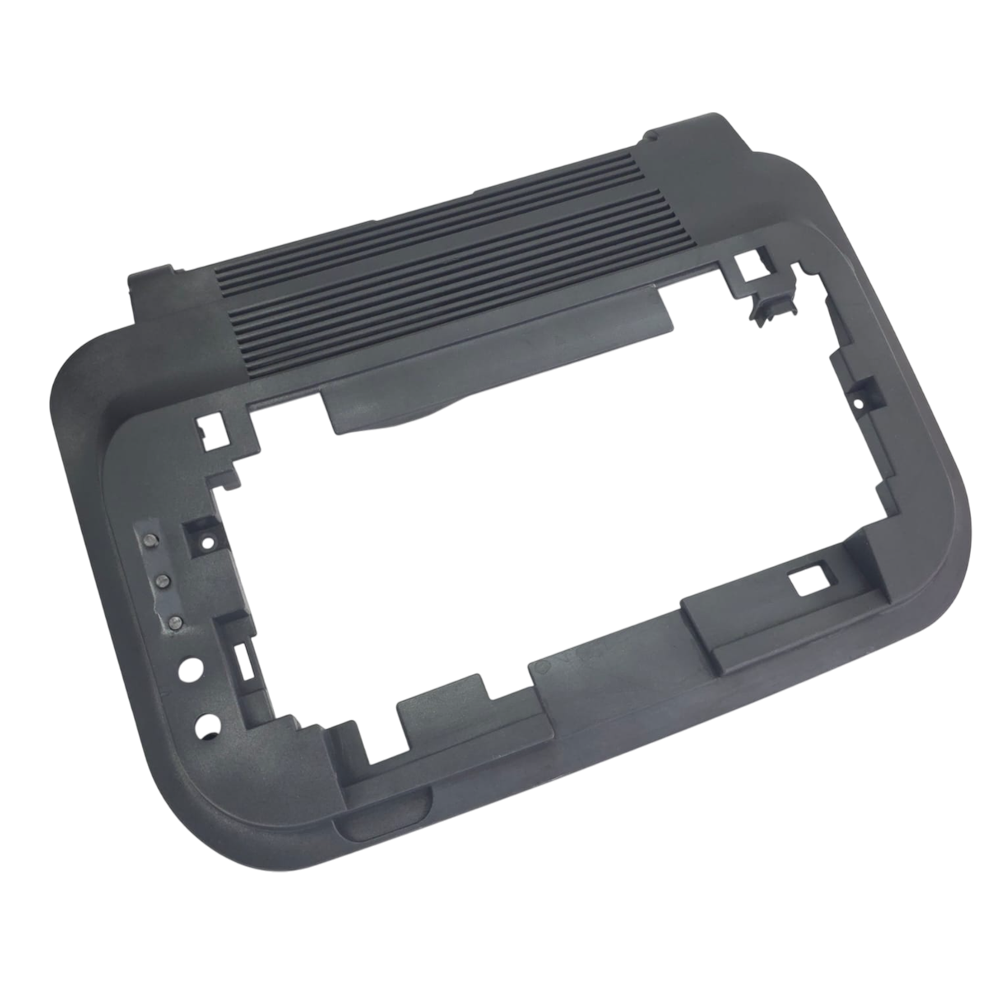

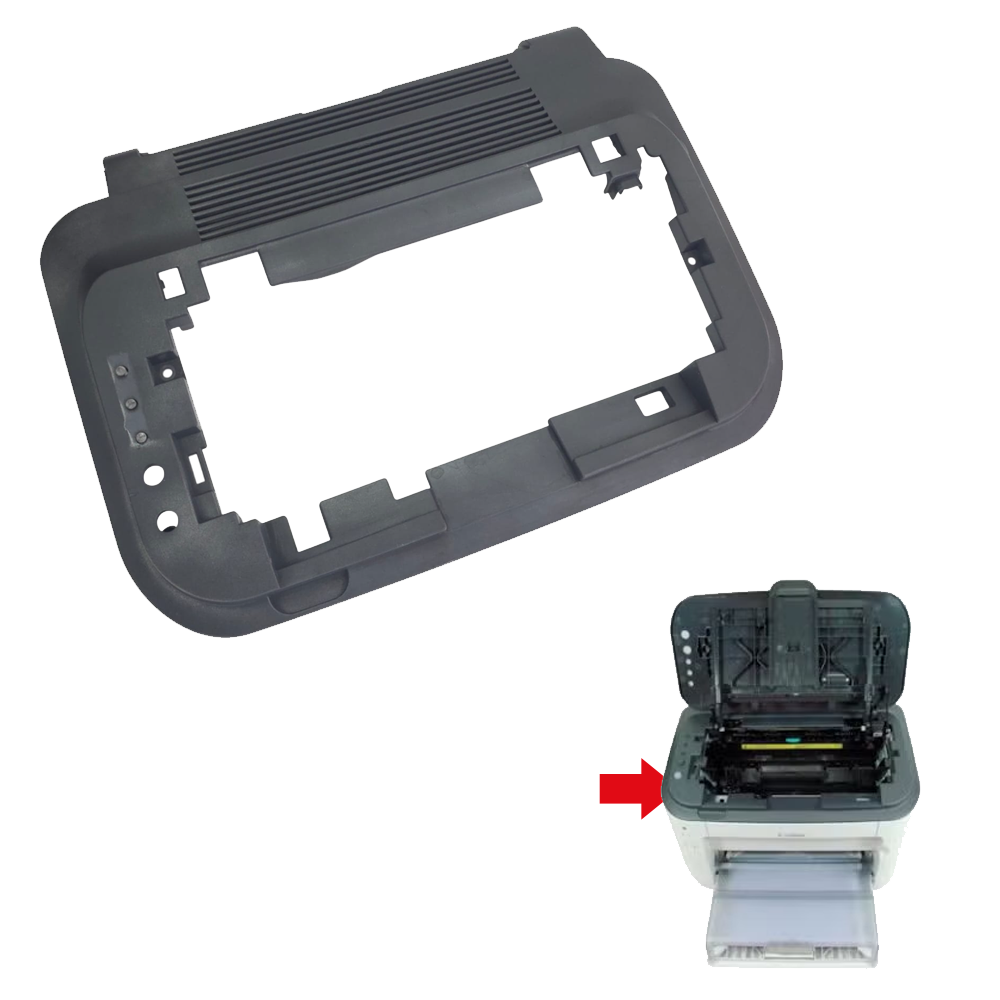

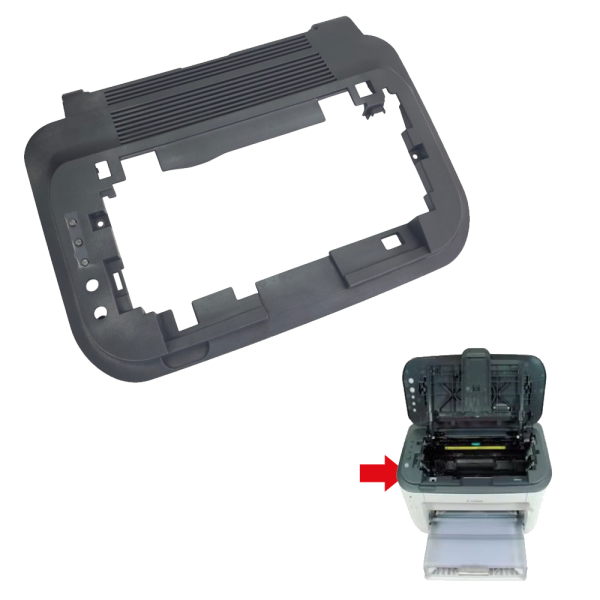

Top Cover Frame – Canon LBP6230

Part Name: Top Cover / Top Frame Assembly
Compatible Printer Model:
️ Canon imageCLASS LBP6230 / LBP6230dn / LBP6230dw/ 6230

Product Description:

The Top Cover Frame is a structural and protective part mounted on the upper section of the Canon LBP6230 printer. It supports the toner access door and internal mechanisms such as the paper feed rollers and scanner/LSU units.

✅ Features:

• Material: Durable ABS-grade molded plastic

• Color: Standard Canon off-white or light grey (based on model batch)

• Fit: Direct OEM-style replacement; no modification required

• Function: Houses and aligns top components, provides access to cartridge

Installation Tips:

• Remove the output tray and toner access cover before removing/installing the top frame

• Typically held with 4–6 screws beneath rear and side panels

• Ensure correct cable routing (e.g., LSU, control panel if applicable)
